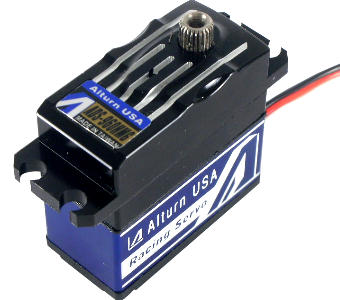

ADS-986HTG+HV / Full Size High Voltage Servo+HS+TG(Ultra High Torque)

@


@

Weight:

56grams / 1.66oz
without splined horn

Dimensions:

39.0 x 19 x 38.5 mm
(1.56 x 0.74 x 1.54 inch)

Torque At 6.0V:

19.1kg/cm , 252oz/in

Speed At 6.0V: 0.16sec / 60 deg at no load

Torque At 7.4V:

22.1kg/cm , 284oz/in
Speed At 7.4V: 0.13sec / 60 deg at no load
Motor Type: Japan Coreless motor
Potentiometer Type

4 Slider/indirect drive

Amplifier Type 6A Double Power MOS-FET
Wire Info (Black) - Negative
Wire Info (Red) + Positive
Wire Info (White) S Single

Package
Dimensions
Complete Datasheet
ADS-986HTG+HV / Full Size High Voltage Servo+HS+TG(High Toque/Speed) Complete Specification
Spare Part#

Servo Gear Set

<#10707> ADS-966HTG (Metal Gears)

Servo Case Set

<#10707> ADS-966HTG (Outside case)

Servo Accessories

<#10708> ADS-966HTG  (Accessories - Horn & screws & rubber )

@
