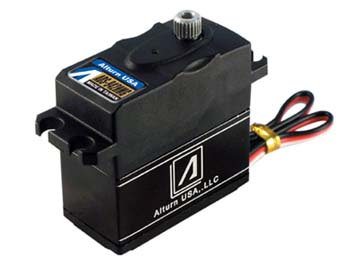

ADS-942HMG / High Performance Racing Digital Servo (High Speed)

¡@
¡@
¡@

Weight:

48grams / 1.59oz            without splined horn

Dimensions:

39.0 x 19 x 38.5 mm                 (1.56 x 0.74 x 1.54 inch)

Torque At 4.8V:

6.3kg/cm , 97oz/in
Speed At 4.8V: 0.11sec / 60 deg at no load

Torque At 6.0V:

 7.4kg/cm , 106 oz/in
Speed At 6.0V: 0.09sec / 60 deg at no load
Motor Type: Japan Coreless motor
Potentiometer Type

4 Slider/indirect drive
Amplifier Type 4A Double MOS-FET
Wire Info (Black) - Negative
Wire Info (Red) + Positive
Wire Info (White) S Single
Package
Dimensions
Complete Datasheet
ADS-942HMG / High Performance Racing Digital Servo(High Speed) Complete Specification
Spare Part#

Servo Gear Set

<#10706> ADS-942HMG (Metal Gears)

Servo Case Set

<#10707> ADS-942HMG (Outside case)

Servo Accessories

<#10708> ADS-942HMG (Accessories - Horn & screws & rubber )
¡@
